SIEMENS SIMOGEAR - Geared Motors Technical Specifications

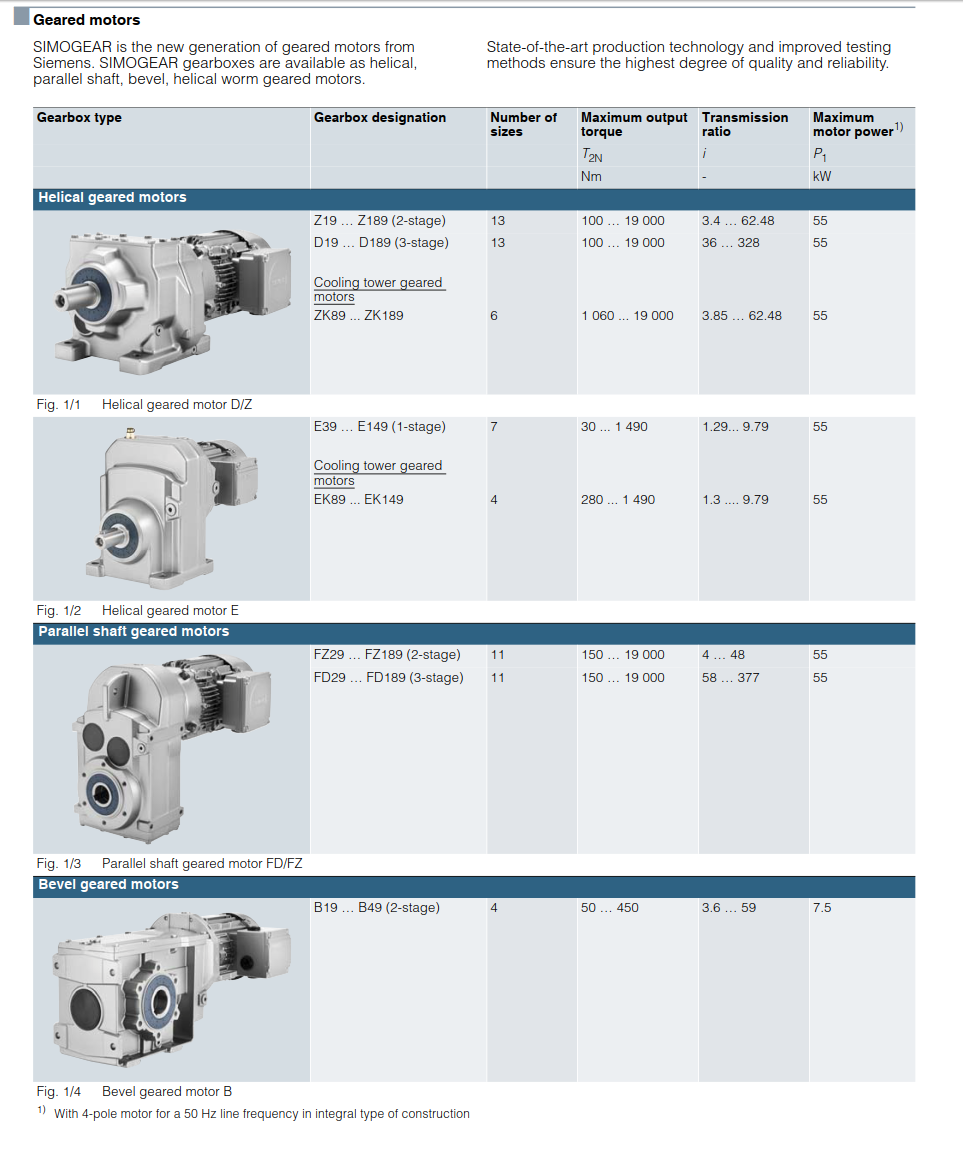

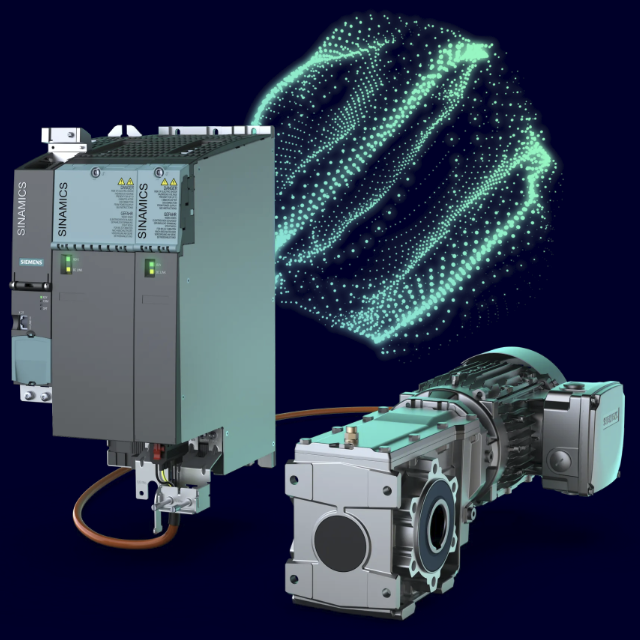

SIMOGEAR is the new generation of geared motors from Siemens, covering helical, parallel shaft, bevel, and helical worm geared motors.

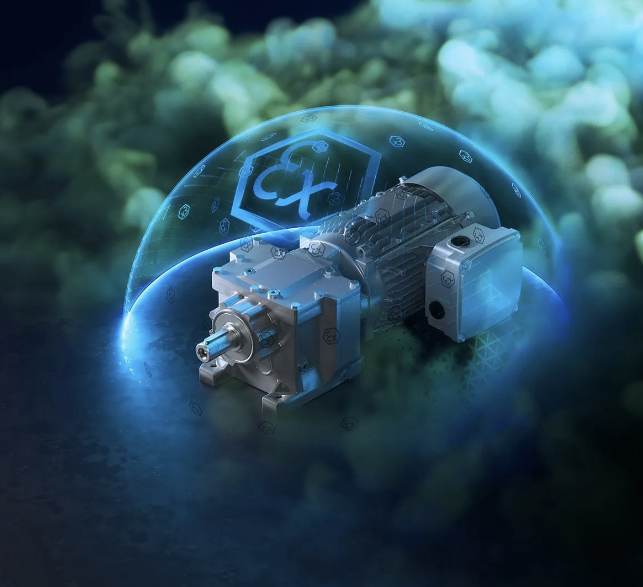

| Gearbox Type | Gearbox Designation | Number of Sizes | Max. Output Torque T2N (Nm) | Transmission Ratio (i) | Max. Motor Power (kW) |
|---|---|---|---|---|---|
| Helical geared motors |
Z19 ... Z189 (2-stage) D19 ... D189 (3-stage) ZK89 ... ZK189 (Cooling tower) |
13 / 13 / 6 | 100 ... 19,000 | 3.4 ... 328 | 55 |
| Helical geared motors (E) |
E39 ... E149 (1-stage) EK89 ... EK149 (Cooling tower) |
7 / 4 | 30 ... 1,490 | 1.29 ... 9.79 | 55 |
| Parallel shaft geared motors |
FZ29 ... FZ189 (2-stage) FD29 ... FD189 (3-stage) |
11 / 11 | 150 ... 19,000 | 4 ... 377 | 55 |
| Bevel geared motors | B19 ... B49 (2-stage) | 4 | 50 ... 450 | 3.6 ... 59 | 7.5 |
Above is the comprehensive table of SIEMENS INNOMOTICS Geared motor, covering Helical (H series) and Bevel-helical (B series) types. It provides detailed Nominal Torque Class T2N and Ratio ranges (i) for sizes 03 up to 14.

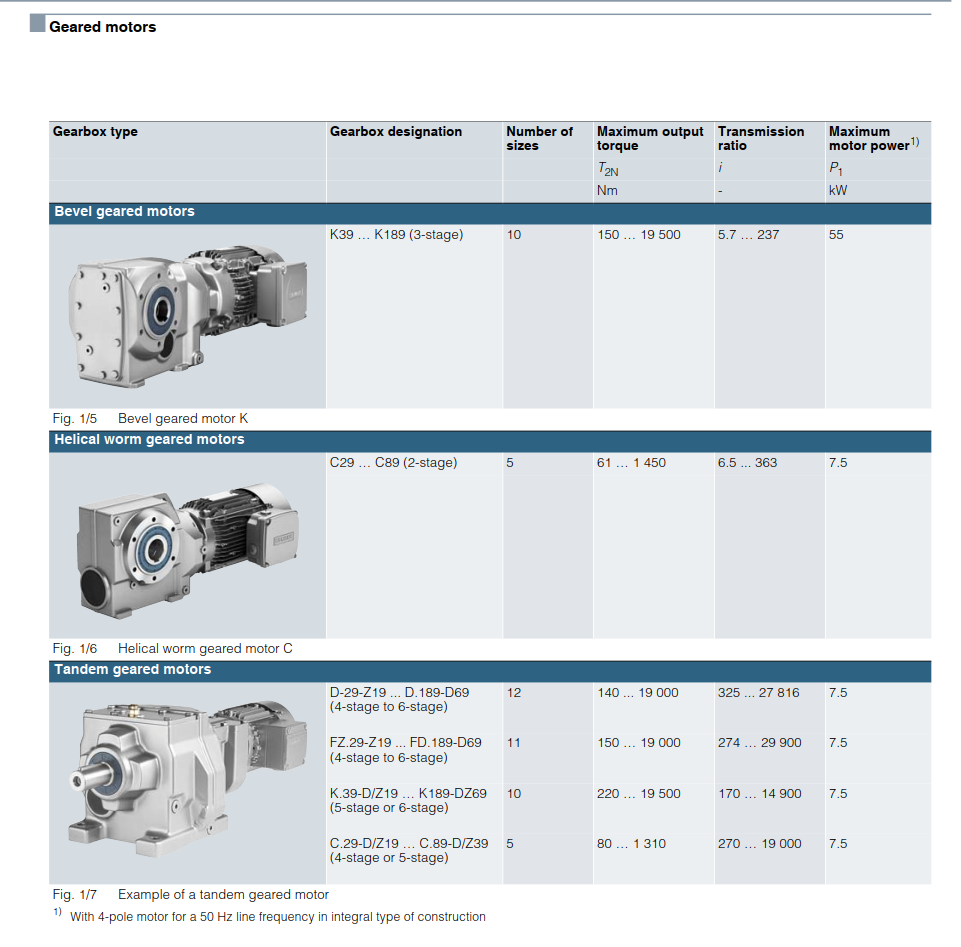

SIEMENS SIMOGEAR - Bevel, Helical Worm & Tandem Geared Motors
| Gearbox Type | Gearbox Designation | Number of Sizes | Max. Output Torque T2N (Nm) | Transmission Ratio (i) | Max. Motor Power (kW) |
|---|---|---|---|---|---|
| Bevel geared motors | K39 ... K189 (3-stage) | 10 | 150 ... 19,500 | 5.7 ... 237 | 55 |
| Helical worm geared motors | C29 ... C89 (2-stage) | 5 | 61 ... 1,450 | 6.5 ... 363 | 7.5 |
| Tandem geared motors |
D..-Z.. ... D..-D.. (4 to 6-stage) FZ..-Z.. ... FD..-D.. (4 to 6-stage) K..-D/Z.. (5 or 6-stage) C..-D/Z.. (4 or 5-stage) |
12 / 11 / 10 / 5 | 80 ... 19,000 | 170 ... 29,900 | 7.5 |
* Note: Maximum motor power ratings are based on 4-pole motors for a 50 Hz line frequency. WeDrive ensures high-precision power transmission with SIEMENS SIMOGEAR technology.
Above is the comprehensive table of SIEMENS INNOMOTICS Geared motor, covering Helical (H series) and Bevel-helical (B series) types. It provides detailed Nominal Torque Class T2N and Ratio ranges (i) for sizes 03 up to 14.

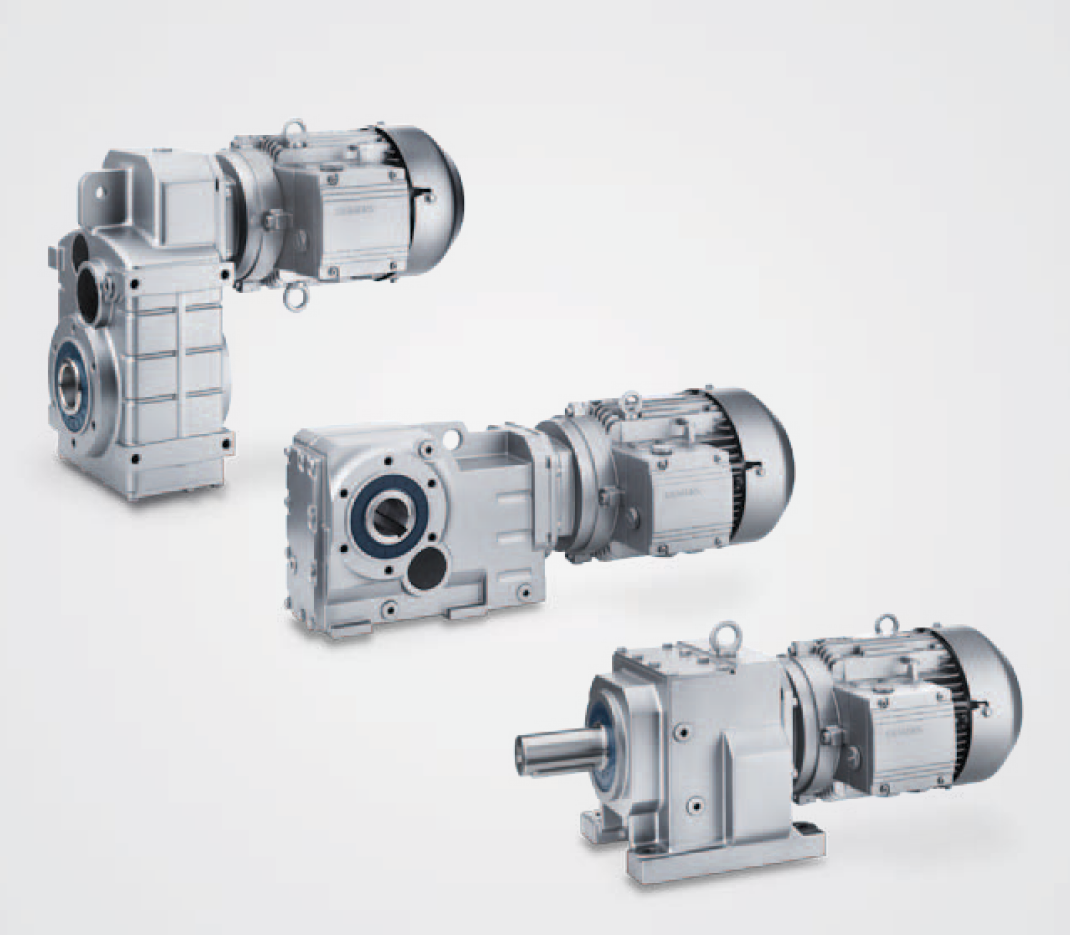

Mounted Type

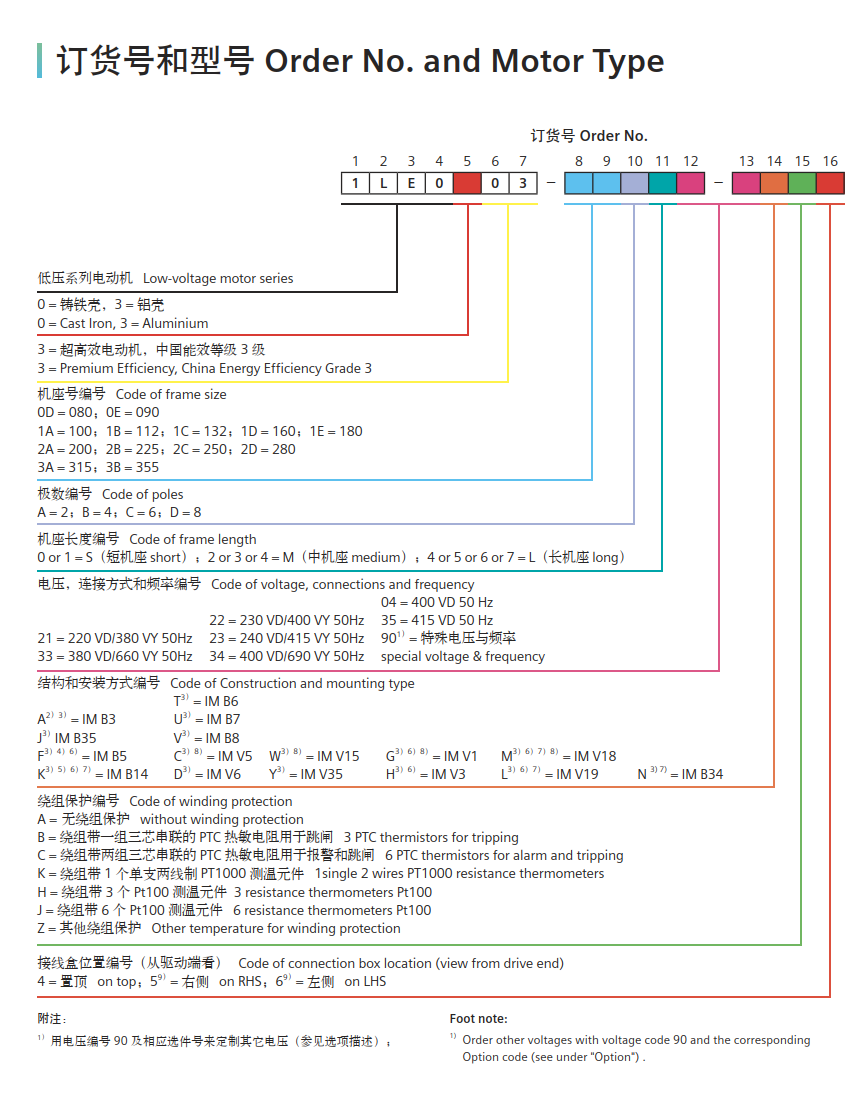

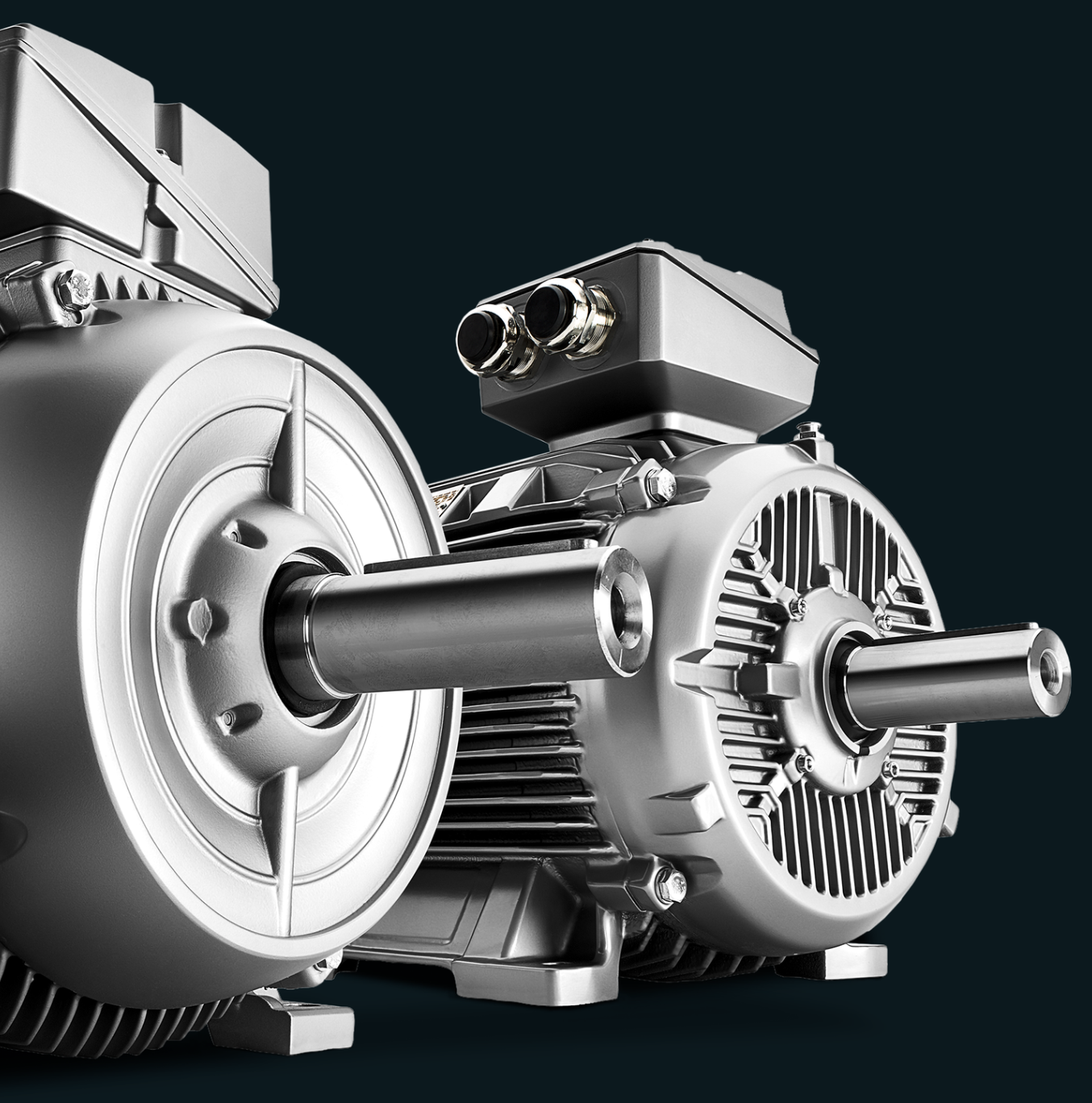

SIEMENS 1LE0 Series - Order No. & Motor Type Decoding Guide
Technical guide for parsing the 16-digit Order No. of Siemens low-voltage motor series.
| Category | Digit Pos. | Code & Meaning |
|---|---|---|
| Series & Housing | 1 - 4 |
1LE0: Low-voltage motor series Digit 4: 0 = Cast Iron, 3 = Aluminium |
| Efficiency Class | 5 | 3 = Premium Efficiency (China Energy Efficiency Grade 3) |
| Frame Size | 6 - 7 |
0D=80; 0E=90; 1A=100; 1B=112; 1C=132; 1D=160; 1E=180; 2A=200; 2B=225; 2C=250; 2D=280; 3A=315; 3B=355 |
| Poles | 8 | A=2; B=4; C=6; D=8 |
| Voltage & Frequency | 11 - 12 |
04 = 400 VD 50 Hz; 22 = 230 VD/400 VY 50 Hz; 34 = 400 VD/690 VY 50 Hz; 90 = Special voltage & frequency |
| Mounting Type | 14 | A=IM B3; J=IM B35; F=IM B5; K=IM B14; G=IM V1; V=IM B8; H=IM V3 |
| Winding Protection | 15 |
A=No protection; B=3xPTC (tripping); C=6xPTC (alarm+tripping); H=3xPt100; J=6xPt100 temperature sensors |
