R, F, K gear units Depending on the number of gear stages, the gearing efficiency of helical, parallelshaft and helical-bevel gear units is up to 96% (3-stage), 97% (2-stage) and 98% (1- stage).

Type designation of a DRN.. gearmotor

The type designation of the gearmotor starts from the component on the output endFor instance, a multi-stage helical-bevel gearmotor with temperature sensor in the mo-tor winding has the following type designation:

Example: K107R77 DRN100LS4 /TF
Gear unit type	K	1st Gear unit
Size	107	1st Gear unit
Gear unit type	R	2nd Gear unit
Size	77	2nd Gear unit
Motor series	DR	Motor
Product line	N
Size	100LS
Number of poles	4
Motor option temperature sensor	/TF	Option

The desians described in this chapter refer to DRN..gearmotors from SEW-EURODRlVE.They also apply to gear units without motors

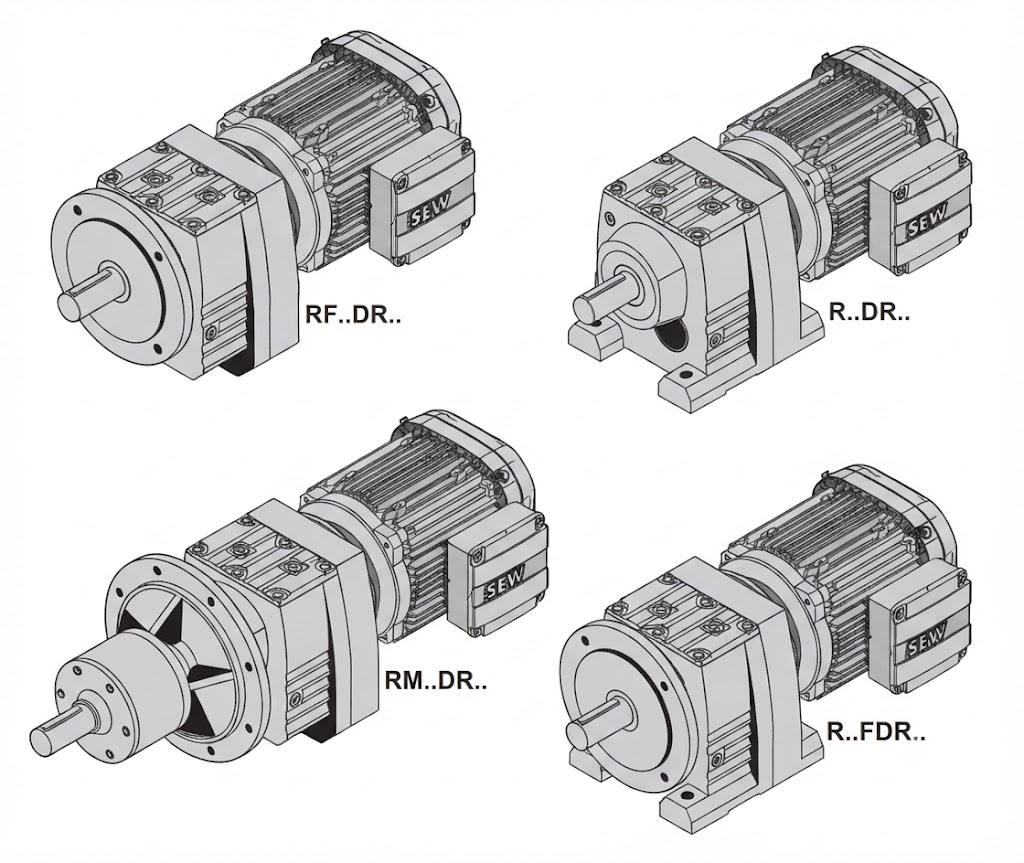

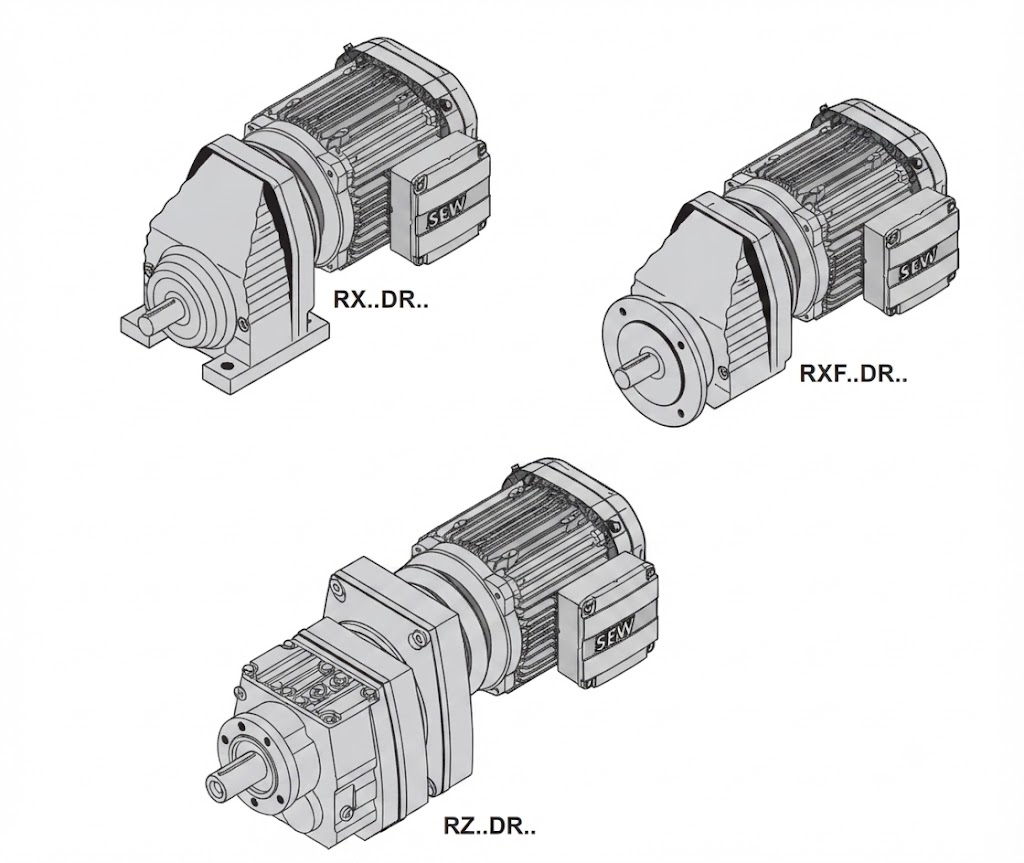

Helical gearmotors The following designs of helical gearmotors are available:

RX..DRN.. Single-stage, helical gearmotor in foot-mounted design

RXF..DRN.. Single-stage helical gearmotor in B5 flange-mounted design

R..DRN.. Helical gearmotor in foot-mounted design

R..F DRN.. Helical gearmotor in foot-mounted and B5 flange-mounted design

RF..DRN.. Helical gearmotor in B5 flange-mounted design

RZ..DRN.. Helical gearmotor in B14 flange-mounted design

RM..DRN.. Helical gearmotor in B5 flange-mounted design with extended bearing hub

R..DRN63MS4-R..DRN315L4 Series Motor 0.12kw-160kw

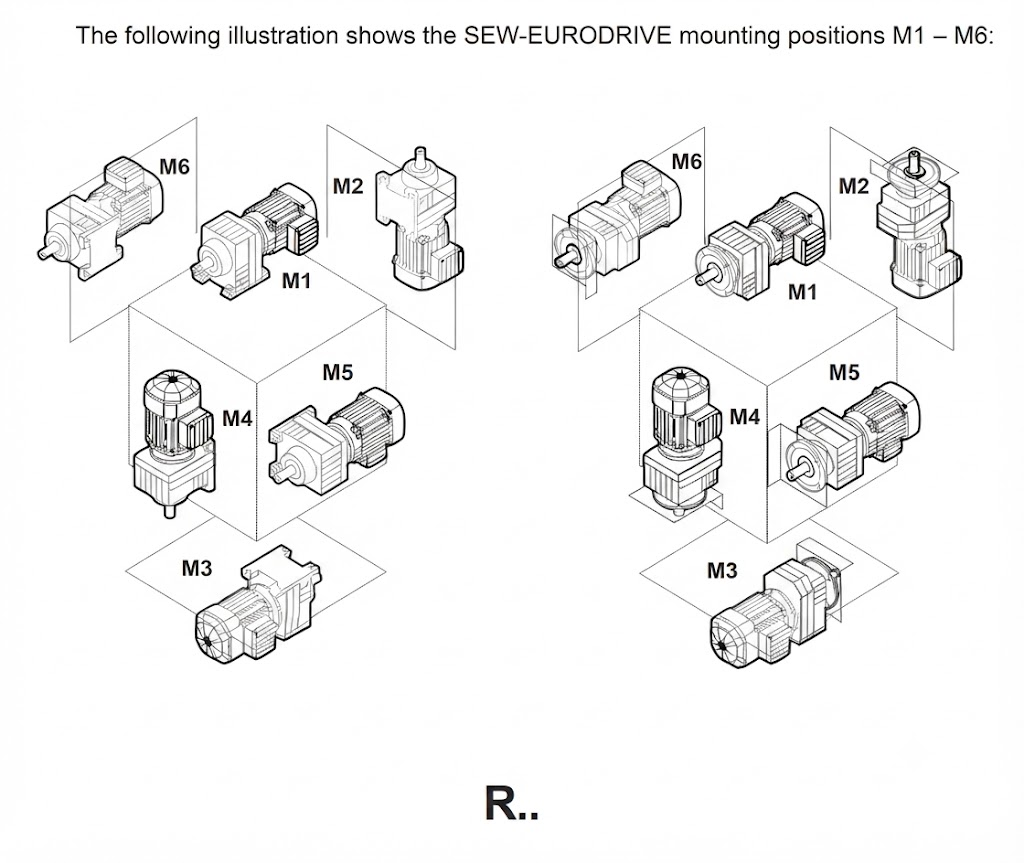

Gear units	M1¹⁾	M2	M3	M4	M5	M6
R..
R07	0.12	-	-	0.20	-	-
R17	0.25	0.55	0.35	0.55	0.35	0.40
R27	0.25/0.40	0.70	0.50	0.70	-	0.50
R37	0.30/0.95	0.85	0.95	1.05	0.75	0.95
R47	0.70/1.50	1.60	1.50	1.65	-	1.50
R57	0.80/1.70	1.90	1.70	2.10	-	1.70
R67	1.10/2.30	2.40	2.80	2.90	1.80	2.00
R77	1.20/3.00	3.30	3.60	3.80	2.50	3.40
R87	2.30/6.0	6.4	7.2		6.3	6.5
R97	4.60/9.8	11.7		13.4	11.3	11.7
R107	6.0/13.7	16.3	16.9	19.2	13.2	15.9
R127	6.4/17	18.3	18.2	22.0	16.8	17.9
R137	10.0/25.0	28.0	29.5	31.5	25.0
R147	15.4/40.0	46.5	48.0	52.0	39.5	41.0
R167	27.0/70.0	82.0	78.0	88.0	66.0	69.0
RF.., RZ..
RF07	0.12	-	-	0.20	-	-
RF17	0.25	0.55	0.35	0.55	0.35	0.40
RF27	0.25/0.40	0.70	0.50	0.70	-	0.50
RF37	0.35/0.95	0.90	0.95	1.05	0.75	0.95
RF47	0.65/1.50	1.60	1.50	1.65	-	1.50
RF57	0.80/1.70	1.80	1.70	2.00	-	1.70
RF67	1.20/2.50	2.50	2.70	2.80	1.90	2.10
RF77	1.20/2.60	3.10	3.30	3.60	2.40	3.00
RF87	2.40/6.0	6.4	7.1	7.2	6.3	6.4
RF97	5.1/10.2	11.9	11.2	14.0	11.2	11.8
RF107	6.3/14.9	15.9	17.0	19.2	13.1	15.9
RF127	6.6/16.0	18.3	18.2	21.4	15.9	17.0
RF137	9.5/25.0	27.0	29.0	32.5	25.0
RF147	16.4/42.0	47.0	48.0	52.0	42.0	42.0
RF167	26.0/70.0	82.0	78.0	88.0	65.0	71.0
RX..
RX57	0.60	0.80	1.30		-	0.90
RX67	0.80		1.70	1.90	-	1.10
RX77	1.10	1.50	2.60	2.70	-	1.60
RX87	1.70	2.50	4.80		-	2.90
RX97	2.10	3.40	7.4	7.0	-	4.80
RX107	3.90	5.6	11.6	11.9	-	7.7
RXF..
RXF57	0.50	0.80	1.10		-	0.70
RXF67	0.70	0.80	1.50	1.40	-	1.00
RXF77	0.90	1.30	2.40	2.00	-	1.60
RXF87	1.60	1.95	4.90	3.95	-	2.90
RXF97	2.10	3.70	7.1	6.3	-	4.80
RXF107	3.10	5.7	11.2	9.3	-	7.2

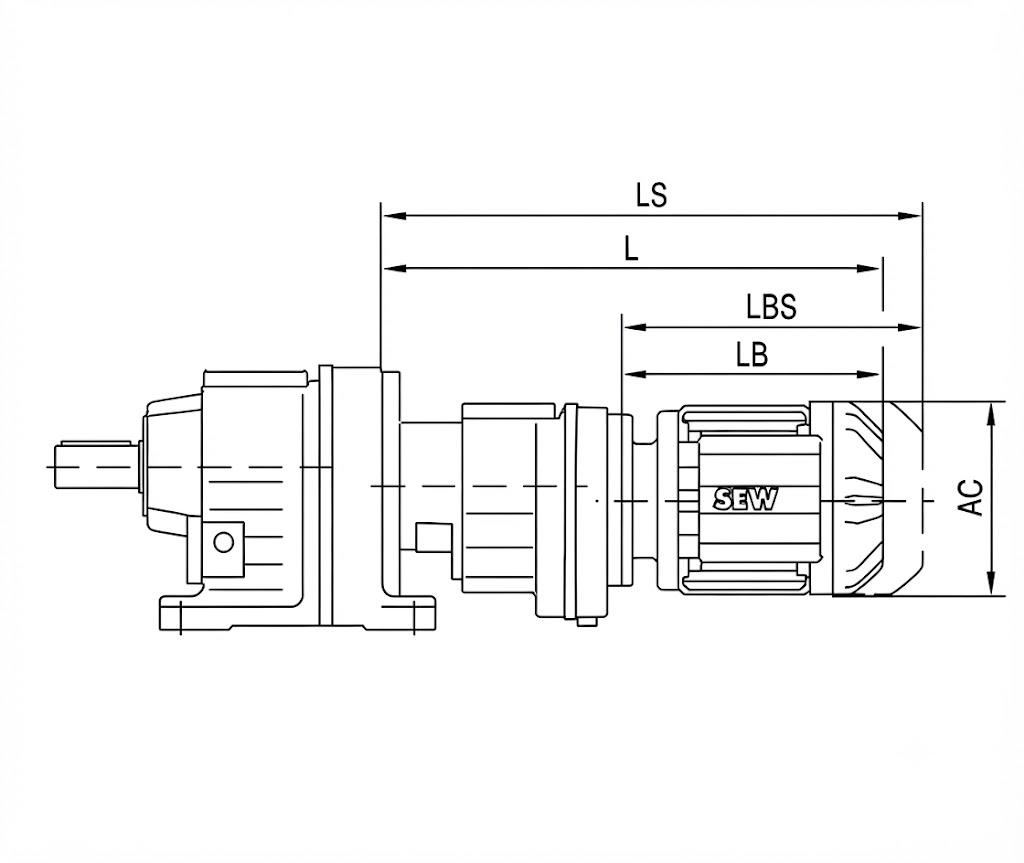

R..R..DRN..dimension sheets in mm

(→ 181)		AC	L	LS	LB	LBS
R..27R17	DRN63MS	115	365	421	190	246
	DRN63M	115	379	435	204	260
	DRN71MS	139	381	448	206	273
	DRN80M	156	452	533	277	358
R..37R17	DRN63MS	115	365	421	190	246
	DRN63M	115	379	435	204	260
	DRN71MS	139	381	448	206	273
	DRN71M	139	401	468	226	293
R..47R37	DRN80M	156	452	533	277	358
	DRN63MS	115	355	411	190	246
	DRN63M	115	369	425	204	260
	DRN71MS	139	371	438	206	273
	DRN71M	139	391	458	226	293
R..57R37	DRN80MK	156	402	483	237	318
	DRN80M	156	447	528	282	363
	DRN63MS	115	355	411	190	246
	DRN63M	115	369	425	204	260
	DRN71MS	139	371	438	206	273
R..67R37	DRN71M	139	391	458	226	293
	DRN80MK	156	402	483	237	318
	DRN80M	156	447	528	282	363
	DRN63MS	115	355	411	190	246
	DRN63M	115	369	425	204	260
	DRN71MS	139	371	438	206	273
R..77R37	DRN71M	139	391	458	226	293
	DRN80MK	156	402	483	237	318
	DRN80M	156	447	528	282	363
	DRN90S	179	448	542	283	377
	DRN63MS	115	347	403	190	246
	DRN63M	115	361	417	204	260
R..87R57	DRN63MS	115	411	467	184	240
	DRN63M	115	425	481	198	254
	DRN71MS	139	427	494	199	267
	DRN71M	139	447	514	219	287
	DRN80MK	156	458	539	230	311
	DRN80M	156	503	584	275	356
	DRN90S	179	504	598	277	370
	DRN90L	179	536	630	309	402
	DRN100L/LM	197	583	676	355	449

(→ 181)		AC	L	LS	LB	LBS
R..97R57	DRN63MS	115	406	462	184	240
	DRN63M	115	420	476	198	254
	DRN71MS	139	422	489	199	267
	DRN71M	139	442	509	219	287
	DRN80MK	156	453	534	230	311
	DRN80M	156	498	579	275	356
	DRN90S	179	499	593	277	370
	DRN90L	179	531	625	309	402
	DRN100LS	197	528	621	305	399
	DRN100L/LM	197	578	671	355	449
R..107R77	DRN63MS	115	424	480	177	233
	DRN63M	115	438	494	191	247
	DRN71MS	139	439	507	192	260
	DRN71M	139	459	527	212	280
	DRN80MK	156	470	551	223	304
	DRN80M	156	515	596	268	349
	DRN90S	179	517	610	270	363
	DRN90L	179	549	642	302	395
	DRN100LS	197	545	639	298	392
	DRN100L/LM	197	595	689	348	442
	DRN112M	221	626	738	379	491
	DRN132S	221	676	788	429	541
R..127R77	DRN63MS	115	424	480	177	233
	DRN63M	115	438	494	191	247
	DRN71MS	139	439	507	192	260
	DRN71M	139	459	527	212	280
	DRN80MK	156	470	551	223	304
	DRN80M	156	515	596	268	349
	DRN90S	179	517	610	270	363
	DRN90L	179	549	642	302	395
	DRN100LS	197	545	639	298	392
	DRN100L/LM	197	595	689	348	442
	DRN112M	221	626	738	379	491
	DRN132S	221	676	788	429	541
	DRN132M	261	694	832	447	585
	DRN132L	261	720	857	473	610
	DRN160..	314	786	975	539	728

(→ 181)		AC	L	LS	LB	LBS
R..137R77	DRN63MS	115	417	473	177	233
	DRN63M	115	431	487	191	247
	DRN71MS	139	432	500	192	260
	DRN71M	139	452	520	212	280
	DRN80MK	156	463	544	223	304
	DRN80M	156	508	589	268	349
	DRN90S	179	510	603	270	363
	DRN90L	179	542	635	302	395
	DRN100LS	197	538	632	298	392
	DRN100L/LM	197	588	682	348	442
	DRN112M	221	619	731	379	491
	DRN132S	221	669	781	429	541
	DRN132M	261	687	825	447	585
	DRN132L	261	713	850	473	610
R..147R77	DRN63MS	115	409	465	177	233
	DRN63M	115	423	479	191	247
	DRN71MS	139	424	492	192	260
	DRN71M	139	444	512	212	280
	DRN80MK	156	455	536	223	304
	DRN80M	156	500	581	268	349
	DRN90S	179	502	595	270	363
	DRN90L	179	534	627	302	395
	DRN100LS	197	530	624	298	392
	DRN100L/LM	197	580	674	348	442
	DRN112M	221	611	723	379	491
	DRN132S	221	661	773	429	541
	DRN132M	261	679	817	447	585
R..147R87	DRN90L	179	577	670	297	390
	DRN100LS	197	573	667	293	387
	DRN100L/LM	197	623	717	343	437
	DRN112M	221	654	766	374	486
	DRN132S	221	704	816	424	536
	DRN132M	261	722	860	442	580
	DRN132L	261	748	885	468	605
	DRN160..	314	814	1003	534	723
	DRN180..	357	837	1026	557	746

(→ 181)		AC	L	LS	LB	LBS
R..167R97	DRN71MS	139	507	575	182	250
	DRN71M	139	527	595	202	270
	DRN80MK	156	538	619	213	294
	DRN80M	156	583	664	258	339
	DRN90S	179	585	678	260	353
	DRN90L	179	617	710	292	385
	DRN100LS	197	613	707	288	382
	DRN100L/LM	197	663	757	338	432
	DRN112M	221	694	806	369	481
	DRN132S	221	744	856	419	531
	DRN132M	261	762	900	437	575
	DRN132L	261	788	925	463	600
	DRN160..	314	854	1043	529	718
R..167R107	DRN100LS	197	664	758	282	376
	DRN100L/LM	197	714	808	332	426
	DRN112M	221	745	857	363	475
	DRN132S	221	795	907	413	525
	DRN132M	261	813	951	431	569
	DRN132L	261	839	976	457	594
	DRN160..	314	905	1094	523	712
	DRN180..	357	928	1117	546	735
